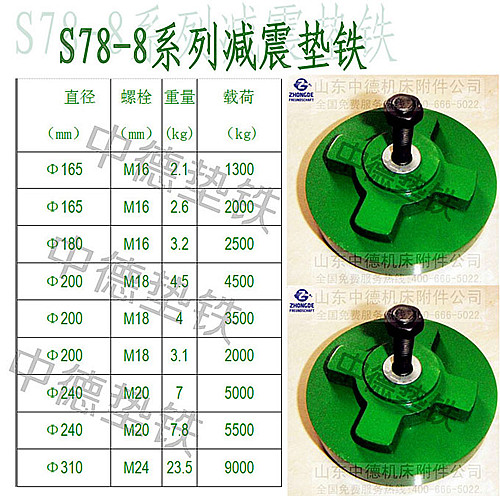

S78-8系列機床減振墊鐵適用范圍:
金屬切削機床、鍛壓機床、橡膠機械、紡織、輕工機械、
食品加工機械、發電機組、泵體。
Application :
Metalcutting machine, Metalforming machine, Printing machine, Rubber and plastic machines, Spinning machines , light industry machines , Food process machines, Generator and Pump machine.
S78-8系列機床減振墊鐵產品特點：
1、 安裝機床不需埋設地腳螺栓，縮短安裝周期，節省安裝費用。
2、 根據生產工藝變化，隨意調整機床位置，實現生產流水線柔性化設計。
3、 調整機床水平方便,迅速。
4、 隔振、減振,降低噪音。
5、 耐油性，耐腐蝕性強
Feature of product:
1. Machines are stationary on floor without anchors. Therefore the cost and time of installation can be greatly saved.
2. The layout of machines can be changed freely according to the modification of manufacturing process. So it is easy to design the flexible production line.
3. It is convenient and quick to adjust the level of machine.
4. Vibration and noise can be reduced and isolated by using this product.
5. It can resist oil and corrosion greatly.
S78-8系列機床減振墊鐵使用方法：
1.將所需墊鐵放入機床地腳孔下，穿入螺栓，旋至和承重盤接觸實。
2.進行機床水平調節（螺栓順時針旋轉，機床升起）。
3.機床水平后，鎖緊螺母，固定水平狀態。
注意：因為橡膠的蠕變現象，在墊鐵第一次使用時，兩星期以后再調節一次機床水平。
How to install:
1.Place the mounts under the anchor hole of the machine. Insert the bolt into the screw hole of mount. And screw it in until it reaches the bearing plate.
2.Adjust the level of machine （screw the bolt clockwise then lift the machine ）
3.Tighten the nuts after adjust the level of machine.
Note :
The level of machine should be readjusted after two weeks in use because the rubber may creep when it is used firstly.
